Shrink wrapping is widely used in manufacturing, retail, distribution, and industrial packaging because it can secure products while creating a clean and consistent outer package. As production volumes grow, businesses often move from manual wrapping toward automated systems that can improve speed, consistency, and material handling. Choosing the right shrink film machine requires understanding how different systems work, what products they can package, and which specifications matter most.

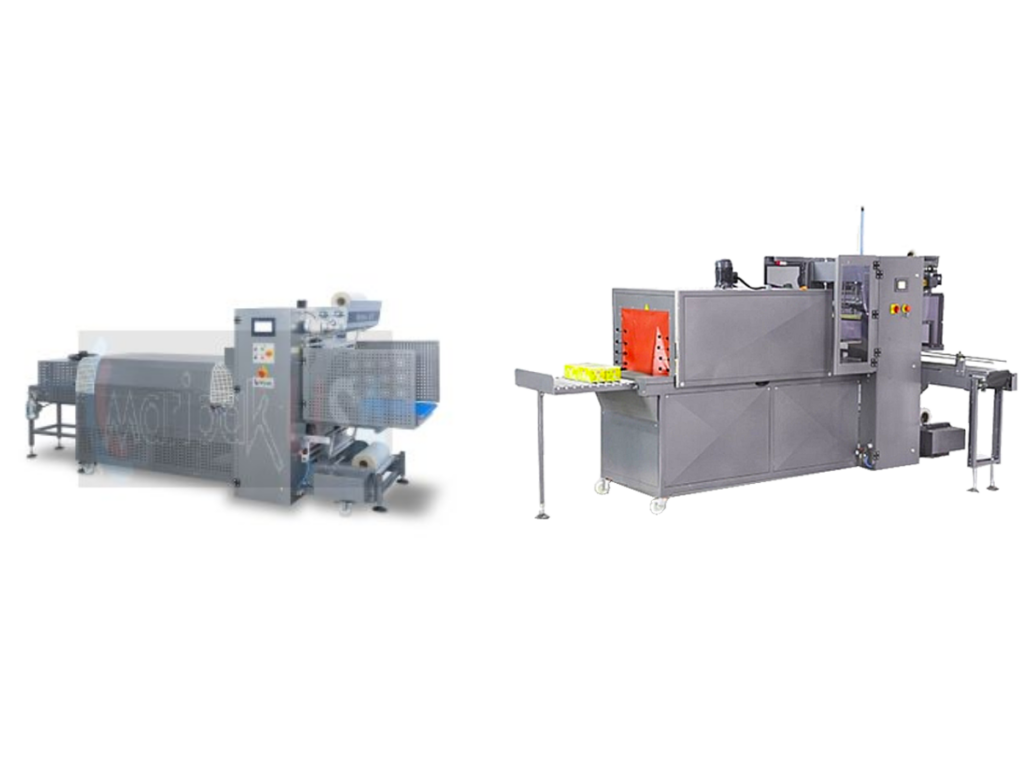

What Is a Shrink Film Machine?
A shrink film machine is packaging equipment designed to wrap products in heat-sensitive plastic film and, depending on the system, seal and shrink that film around the product. The process typically involves positioning the product, applying film, sealing the film, and exposing the package to controlled heat.
The heat causes the film to contract around the product, creating a close-fitting package. A complete shrink-wrapping system may therefore include a sealer, conveyor, and heat tunnel rather than relying on a single machine. The sealer creates the enclosed film package, while the tunnel provides the controlled heat needed for shrinking.
Different systems are designed for different production environments, ranging from manual equipment for low-volume applications to fully automatic machinery for high-throughput packaging lines.
How Does a Shrink Film Machine Work?
The exact process depends on the equipment configuration, but most automated shrink packaging systems follow a similar sequence.
First, the product is positioned on the conveyor or in the machine’s feeding area. Shrink film is then drawn around the product before the sealing mechanism closes the film. The wrapped product moves toward a heat tunnel, where controlled hot air causes the film to contract.
Temperature, airflow, conveyor speed, film thickness, and package dimensions all affect the final result. If the film receives insufficient heat, it may remain loose or develop wrinkles. Excessive heat can cause distortion or damage to the film or product.
This makes proper machine setup essential. A shrink film machine must be matched to the film and product rather than operated using identical settings for every application.
What Are the Main Types?
Several types of shrink-wrapping equipment are available, and each serves different production requirements.
L-Sealer Machines
L-sealers use an L-shaped sealing mechanism to cut and close film around a product. They are available in manual, semi-automatic, and fully automatic configurations.
They can be appropriate for businesses handling consistent product sizes and requiring a relatively straightforward shrink-wrapping process. Automatic L-sealers can also be integrated with conveyors and heat tunnels for higher-volume applications.
Side-Sealing Machines
Side sealers create a continuous longitudinal seal along the product as it moves through the machine. This configuration can be useful for products with varying lengths and production environments that require continuous product flow.
Some automatic side sealers incorporate automatic length detection, adjustable film tension, and temperature controls to maintain consistent packaging across different products.
PE Wrapping and Bundling Systems
Polyethylene wrapping systems are generally designed for heavier-duty applications, including multipacks, bundles, and products requiring additional load stability.
These systems can include automatic sealing and tunnel-wrapping functions, as well as configurations designed for continuous sleeve wrapping.
Heat Shrink Tunnels
A heat tunnel performs the shrinking stage after the product has been sealed in film. Tunnel size, heating capacity, airflow, and conveyor speed must correspond with the product and film being processed.
Which Shrink Films Can Be Used?
Film selection is one of the most important factors when purchasing a shrink film machine. Common shrink-film materials include polyolefin (POF), PVC, and polyethylene (PE).
POF is frequently used for retail and consumer products because of its clarity, puncture resistance, and broad application range. PVC can provide a clear and tight package for certain retail applications. PE is generally associated with heavier-duty applications, including multipacks and industrial bundles.
Film thickness also matters. Thicker films can provide additional durability, while thinner films may be appropriate for lighter products. However, film selection must also account for the sealing system, machine compatibility, shrink characteristics, and required package appearance.
What Are the Benefits of Automated Shrink Wrapping?
Automation can provide several advantages when packaging volumes are high enough to justify dedicated equipment.
A shrink film machine can produce more consistent seals and film application than repetitive manual wrapping. Automated systems can also reduce the amount of manual handling required and support more predictable production rates.
Other potential benefits include:
- Consistent package presentation
- Repeatable sealing
- Reduced repetitive labor
- Higher packaging throughput
- Better film control
- Easier conveyor integration
- Improved production consistency
The actual benefits depend on the equipment configuration, product characteristics, film type, and production environment.
How Do You Choose the Right Machine?
Businesses should consider several factors before purchasing a shrink film machine.
Product Size and Shape
Measure the minimum and maximum product dimensions, including height, width, length, and weight. Irregular products may require a different sealing configuration from standard rectangular packages.
Production Volume
Calculate the number of packages required per hour or shift. Equipment should provide sufficient capacity for current requirements while leaving reasonable room for future growth.
Film Specifications
Identify the preferred film material, thickness, width, shrink characteristics, and required package appearance. The machine must be compatible with these specifications.
Automation Level
Manual equipment may be appropriate for low-volume operations. Semi-automatic machines can improve consistency while retaining operator involvement, while fully automatic systems are generally better suited to continuous, high-volume production.
Available Space
Consider the complete footprint, including the machine, conveyors, heat tunnel, film-loading access, operator workspace, and maintenance clearance.
Why Does Line Integration Matter?
A shrink-wrapping machine rarely operates in isolation in a modern production environment. It may need to connect with upstream conveyors, feeders, product grouping systems, labeling equipment, or downstream handling equipment.
A line should be designed around a balanced flow. If the sealing machine operates faster than the heat tunnel, the tunnel can become a bottleneck. Similarly, inconsistent product feeding can prevent a high-speed machine from reaching its rated capacity.
For this reason, businesses should evaluate the entire packaging workflow rather than selecting equipment based only on the highest advertised cycle rate.
How Can Businesses Reduce Film Waste?
Film consumption depends on package dimensions, film thickness, sealing configuration, and machine settings. Proper film sizing can reduce unnecessary material use while maintaining adequate coverage.
Automated film-tension controls can also help maintain consistent film movement. Some modern side-sealing systems use controlled film transport and trimless sealing configurations specifically to reduce excess film consumption.
Regular machine adjustment is equally important. Poor film tracking, incorrect tension, or unsuitable sealing parameters can increase waste and lead to defective packages.
Maintenance and Operator Training
Regular maintenance helps maintain consistent machine performance. Operators should inspect sealing components, conveyors, film paths, heating elements, sensors, and controls according to the equipment manufacturer’s recommendations.
Cleaning is also important because film residue and debris can interfere with sealing and moving components.
Training should cover film loading, machine startup, temperature settings, conveyor adjustments, alarm responses, cleaning, and routine inspections. Proper operator knowledge can reduce avoidable downtime and help maintain consistent package quality.
When Is a Shrink Film Machine Worth the Investment?
A shrink film machine becomes particularly valuable when packaging is repetitive, production volumes are increasing, or consistent package quality is difficult to maintain manually.
Smaller businesses may benefit from semi-automatic equipment, while larger operations may require fully automatic side sealers, L-sealers, PE bundlers, or integrated shrink systems.
The appropriate investment should be based on actual production requirements, not simply the machine’s maximum speed. Product variation, film consumption, labor requirements, floor space, and future production goals should all be considered.
Conclusion
A shrink film machine can help businesses improve packaging consistency, reduce repetitive manual work, and create a more controlled production process. Different equipment configurations, including L-sealers, side sealers, PE wrapping systems, and heat tunnels, provide options for different products and production volumes. Before choosing equipment, businesses should evaluate product dimensions, production speed, film requirements, automation level, available space, and integration with the existing packaging line. Maripak USA can be researched as one industry resource when comparing shrink packaging equipment and system configurations. Selecting equipment based on the complete packaging workflow can help businesses achieve reliable performance and long-term operational efficiency.
